| Roll width options | 1000mm (40") 1300mm (52") 1600mm (63") 1800mm (71") 2000mm (80") |
| Master roll diameter options | 1000mm (40") 1300mm (52") |
| Rewind diameter options | 610mm (25") 800mm (30") 1000mm (40") |
| Minimum slit roll width | > 10mm > 0.39" |
| Slitting options | Razor Shear Crush |
| Maximum speed options | 300 m/min (1000 ft/min) 450 m/min (1500 ft/min) 600 m/min (2000 ft/min) |
| Materials | Papers Label stock Laminates Foils Films Compound materials |

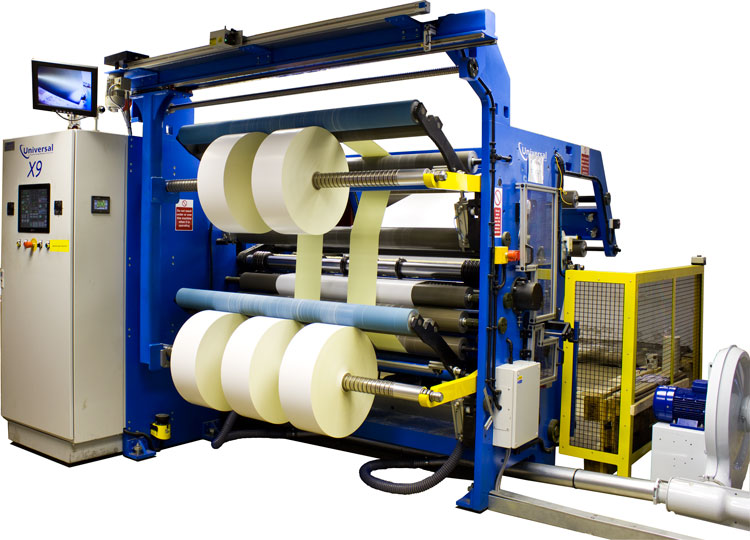

Multi-purpose duplex centre wind Slitter Rewinder
The Universal X9 slitting machine has been designed to produce perfect slit rolls time and time again. This robust and versatile slitter rewinder incorporates Universal’s closed loop Total Tension Control System ensuring consistent and repeatable roll tension profiles. Using the latest digital AC vector drives and integrated control system, the machine offers unprecedented control whilst being simple and friendly to operator. Safety is designed into all aspects of the machine. The integrated technology allows remote diagnostics anywhere in the world simplifying ongoing support.
Slitting Machine Features:
- Total Tension Control System. The ultimate closed loop tension control system ensuring every roll is produced to the required tension profile.
- No hydraulics used eliminating the risk of material contamination. The ideal hygienic machine for slitting medical and food packaging products.
- Extensive recipe system combined with closed loop control guarantee product quality
- Data transfer system allows a record of all the key operating parameters to be saved and downloaded from the machine
- Low maintenance technology used throughout the machine with remote diagnostics anywhere worldwide
- Shaft-less unwind eliminating the manual handling of heavy shafts
- Visually intuitive touch screens fitted to the rewind and unwind of the machine
- Compact design occupying a small footprint and easy to install
- Versatile machine designed to handle a wide range of materials including OPP, PET, LDPE, PA, paper, foils and laminate
- Specification can be customised to match specific requirements with a range of additional options
The Universal X9 allows film and paper converters to take total control of all the process parameters that are critical to obtaining high quality reels of material.
Options available
- Automatic knife positioning
Rapid and accurate set up of shear, razor and crush cut knives
Find out more… - Automatic core alignment
Ensures that the cores are always correctly positioned
Find out more… - Differential air shafts
Incorporating the latest, proven “ball chuck” technology to provide even tension across the width of the machine. The chucks grip the inside of the cores preventing the generation of core dust
Find out more… - Core cutter integration
The Universal X9 can be connected to the Universal CCS Core Cutter, making the most of the X9 recipe recall system
Find out more about core cutters… - Roll offloaders
Automated offloading eliminates the need for any manual heavy lifting
Find out more about roll handling…. - Camera system
Allowing the operator to see the front of the machine when positioned at the back of the machine (and vice versa)
- Data transfer
Data logged on the Universal X9 can easily be transferred to a network location or printed off locally
- X9 SR
X9 SR is designed specifically to meet the needs of converters with frequent product changes.
Find out more…
