| Roll width | 1600mm (63") |
| Master roll diameter | 1000mm (40") |
| Rewind diameter | 610mm (25") |
| Minimum slit roll width | > 10mm (0.39") |
| Slitting options | Razor (option for auto-set) Shear (option for auto-set) |
| Maximum speed options | 300 m/min (1000 ft/min) 450 m/min (1500 ft/min) 600 m/min (2000 ft/min) |
| Materials | Metalised polyester |

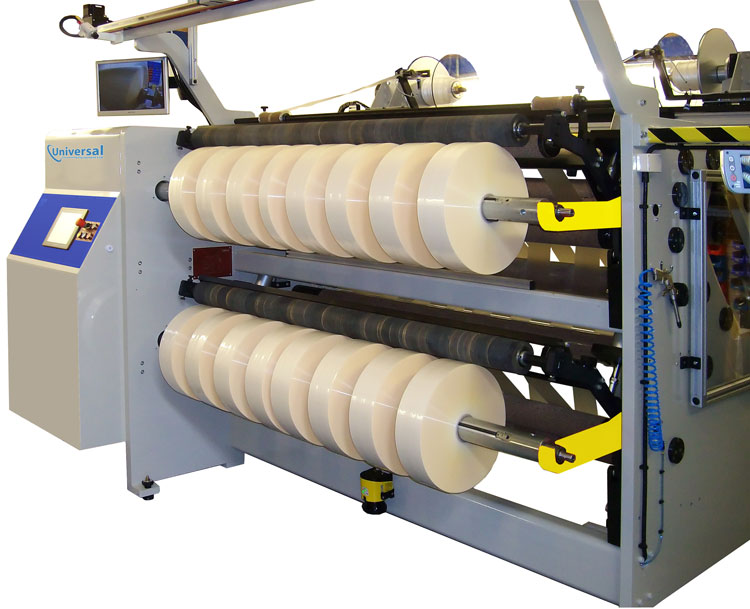

The Universal X8 was designed as a high-productivity spooler/ slitter rewinder for hot stamping foils based on metalised polyester. Designed to slit and rewind onto 1″ or 3″ cores. The X8 hot stamping foil slitter is the ultimate in terms of market-leading productivity, and utilises load-cell control of flux vetor AC motors giving unrivalled tension profiling of finish reels.
The machine has a small footprint and can be installed and running in a day.
