Short run slitter rewinder

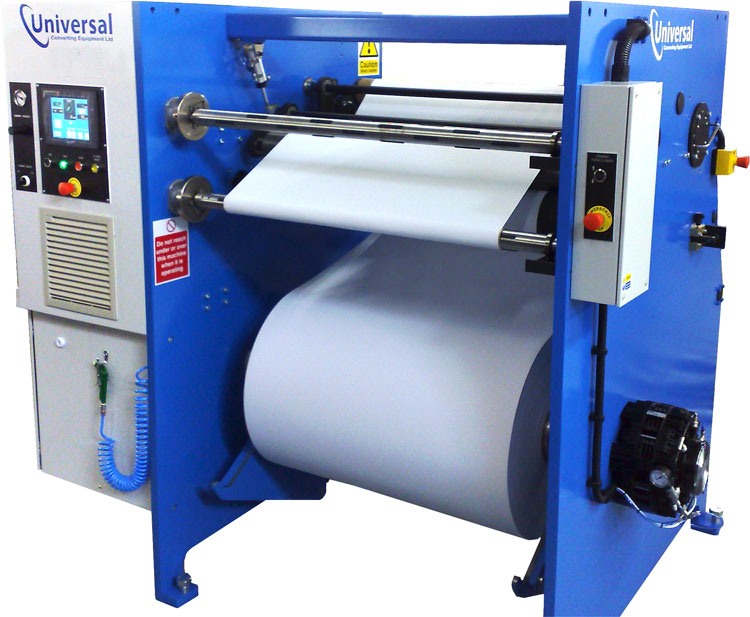

Primarily designed to spool onto a single shaft the Universal X5 has developed into a high-productivity duplex (two shaft) slitting machine. The large unwind capacity and smaller rewind diameter size was built with paper slitting in mind, but the power available to the cutting section on this machine makes the X5 equally at home cutting anything from packaging films to thick rubber.
Driven rollers in the web path provide excellent tension isolation and control between the unwind and rewind sections.
Optional parent roll lift-in and swing-out safety chucked rewind shafts make the Universal X5 quick to set up and unload, and requires a minimal amount of operator training. Installation and training typically require just one day.
|Roll width||1000mm (40")|
|Original (master) roll diameter||1000mm - (40")|
|Maximum rewind (finish) roll diameter||100 - 450mm (4" - 18")|
|Minimum finish roll width||> 10mm|
|Maximum speed||100 m/min (300 ft/min)|
300 m/min (1000 ft/min)
