This Titan SR6 Slitter Rewinder is a 1800mm wide variant of this exceedingly popular machine. This machine is available for demonstration and inspection at our facility in Ipswich.

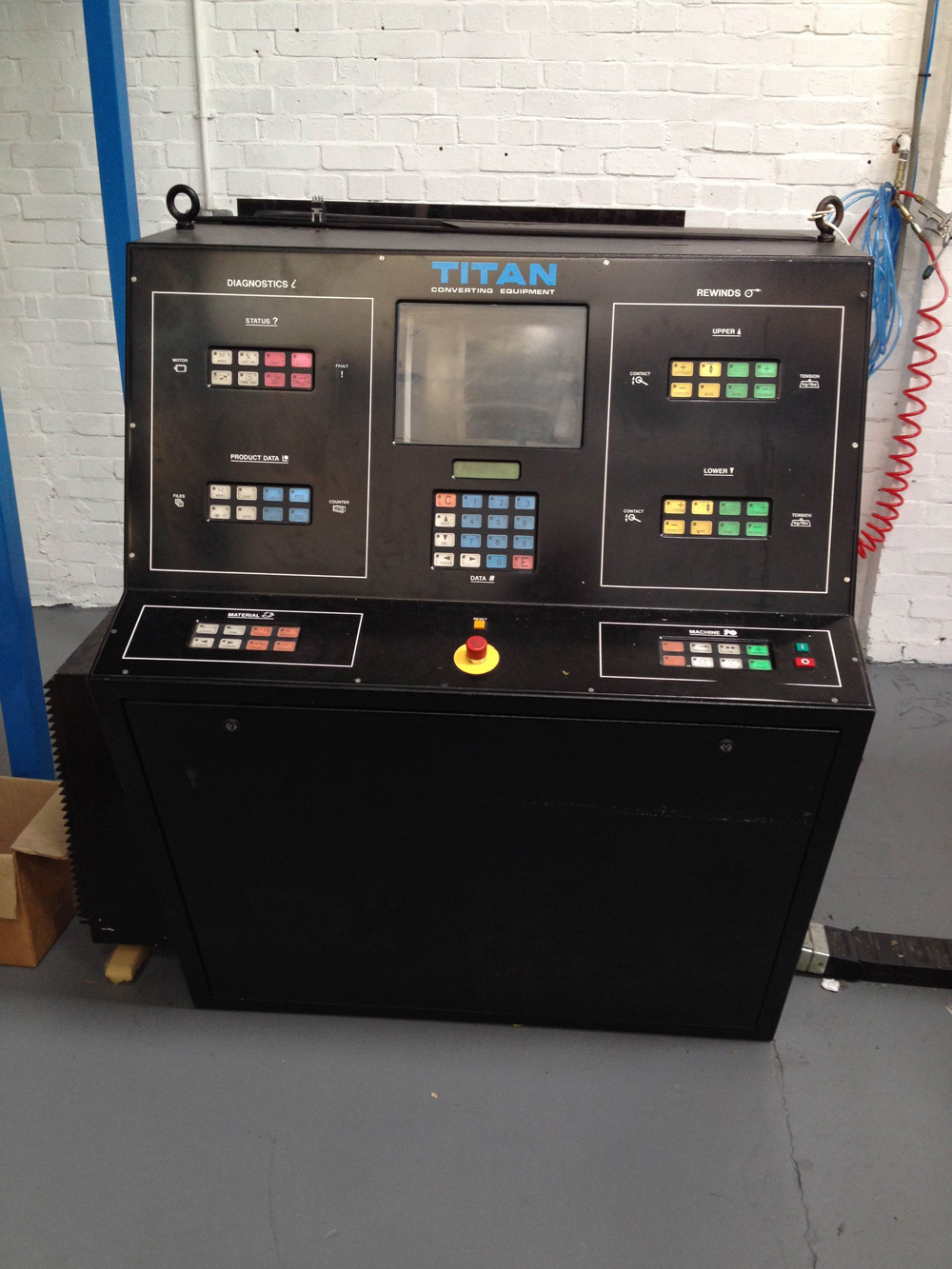

This slitter can be supplied with the existing 590 drives and digital PC controls, or can be upgraded with a new 2014 control system including one 15″ touchscreen control on the rewind and two 7″ touchscreen controls either side of the unwind.
Also supplied is a roll unload trolley.

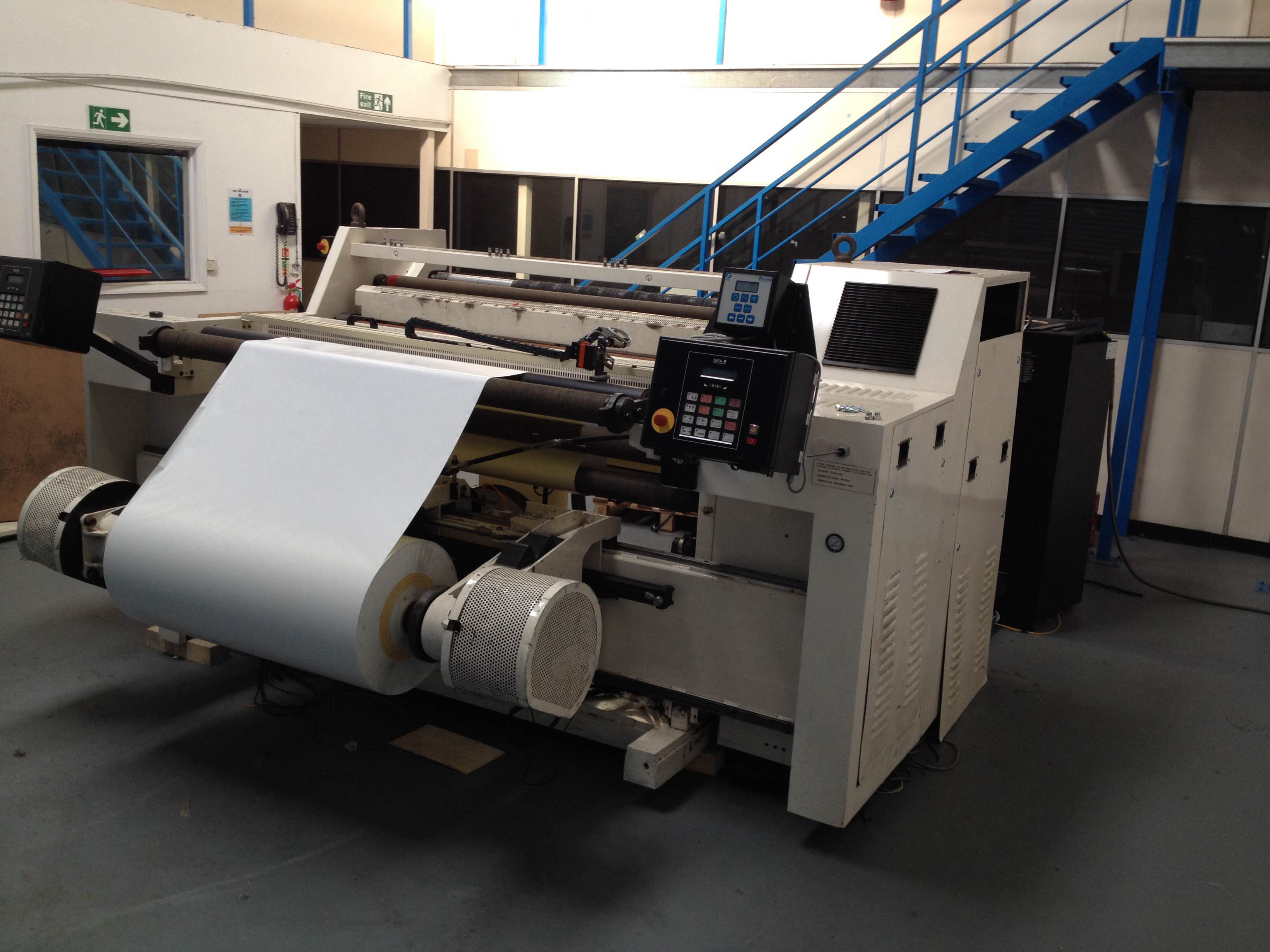

Unwind/ master rolls:
- Maximum roll width – 1800mm
- Maximum roll diameter – 1000mm
- Roll material – Various
- Material thickness – Various

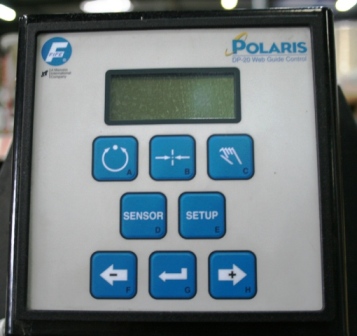

- Web guiding – FIFE Polaris web guider
- Pneumatic nip roller
- Autom tension control
- Shaftless unwind with floor pickup
- Core size – 76mm / 3 inch
Slitting/ cutting:
- Slitting type – razor (in air) and shear

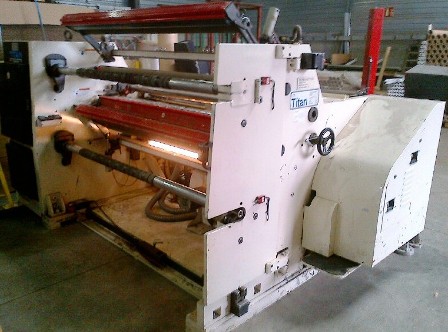

Rewind/ finish rolls:
- Maximum roll diameter – 600mm
- Lay-on rollers
- QuickLock core chucks
- Speed – 450 m / minute
- Core size – 76mm / 3 inch
